CONFIRM THE PART FITS
Part Information

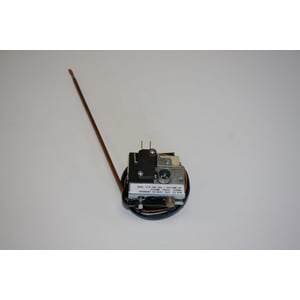

This oven control thermostat (part number WB20K5031) is for ranges.
Oven control thermostat WB20K5031 turns the heat on and off to maintain the oven temperature you set.
Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $44.59 |12% OFF Phone Price : $50.59
- $19.06
- $7.38 |12% OFF Phone Price : $8.38
- $8.59 |10% OFF Phone Price : $9.59
- $22.26
- $10.33 |16% OFF Phone Price : $12.33
- $13.40 |13% OFF Phone Price : $15.40
- $17.03
- $18.63 |10% OFF Phone Price : $20.63
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #9114524894 Kenmore electric range | 9114524894 | Control panel |
Model #9114624895 Kenmore electric range | 9114624895 | Main top |
Model #9114524194 Kenmore electric range | 9114524194 | Control panel |
Model #9114624195 Kenmore electric range | 9114624195 | Main top |
Model #9114534091 Kenmore electric range | 9114534091 | Backguard section |
Model #9114534191 Kenmore electric range | 9114534191 | Backguard section |
Model #9114524192 Kenmore electric range | 9114524192 | Backguard section |
Model #9114524191 Kenmore electric range | 9114524191 | Backguard section |
Model #9114524193 Kenmore electric range | 9114524193 | Backguard |
Model #9114524195 Kenmore electric range | 9114524195 | Control panel |
Reviews
Take care with the wires.
To install this oven thermostat in the stove model that we have, you remove the burners and raise the top. Remove the plate that goes across. Then you can install it without pulling the stove out from the wall. There are four wires that have to be connected. Remove and connect them one by one to the new thermostat. There was an extra wire on the old thermostat that did not come with the new one. Carefully remove the extra wire from the old one and connect it to the new one.
Udem, California
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
