CONFIRM THE PART FITS

  • Refrigerator Compressor Start Relay (replaces W11283549, Wp2319794) W11285096
  • Refrigerator Compressor Start Relay (replaces W11283549, Wp2319794) W11285096
  • Refrigerator Compressor Start Relay (replaces W11283549, Wp2319794) W11285096

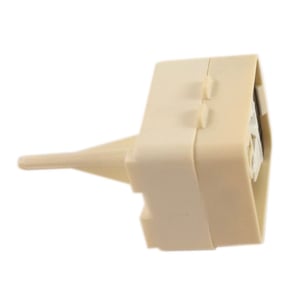

Refrigerator Compressor Start Relay (replaces W11283549, WP2319794) W11285096

Part #W11285096

Online Only Price
$73.72 |
8% OFF Phone Price : $79.72
In Stock
For ZIP codes near Edit
60-day return policy
This part fits
Previous part numbers
Part #W11283549
Part #2255968
Part #WP2319794
Part #61006022
Part #2319794

Part Information

This compressor start relay (part number W11285096) is for refrigerators.

Compressor start relay W11285096 attaches to the compressor and helps start the compressor motor.

Safely store any food that could deteriorate while the power is off and unplug the refrigerator before installing this part. Wear work gloves to protect your hands.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #CT17G4Q Crosley top-mount refrigeratorCT17G4Q
Compressor (rev 13)
Shop Parts
Model #CT21G6Q Crosley top-mount refrigeratorCT21G6Q
Compressor (rev 13)
Shop Parts
Model #CT19G6B Crosley top-mount refrigeratorCT19G6B
Compressor (rev 14)
Shop Parts
Model #CTB2125GRB Magic Chef top-mount refrigeratorCTB2125GRB
Compressor (rev.13)
Shop Parts
Model #CTB1925GRW Magic Chef top-mount refrigeratorCTB1925GRW
Compressor (rev.14)
Shop Parts
Model #CTB1521GRW Magic Chef top-mount refrigeratorCTB1521GRW
Compressor (rev. 13)
Shop Parts
Model #CTF1722GRW Magic Chef top-mount refrigeratorCTF1722GRW
Compressor (ctf1722grw rev.13)
Shop Parts
Model #CTB1722GRW Magic Chef top-mount refrigeratorCTB1722GRW
Compressor (rev. 13)
Shop Parts
Model #CTB1722GRQ Magic Chef top-mount refrigeratorCTB1722GRQ
Compressor (rev. 13)
Shop Parts
Model #PTF1952GRW Maytag top-mount refrigeratorPTF1952GRW
Compressor (rev 13)
Shop Parts

Reviews

Part does not fit
September 22, 2021

The replacement part does not fit for my Kenmore fridge - the power connectors are different than the original part. The website doesn't show a picture of the side with the power connectors so you won't have an idea of whether it'll fit until after you've purchased and received the part.

njkenmore, NJ

Did you find this review helpful?

Ease of Installation
Very Difficult
Duration of Installation
More than 2 hours

Yes, I would recommend this to a friend

Not the same as OEM & different in color
January 24, 2020

Don't advertise this relay as viewed that is not a direct replacement this was the reason I bought it!! I had to cut the factory plug to modify it with spade connectors & had to figure out which was load & neutral on this white relay there are no identifying markings. I also had to cut & modify the hold down strap!! PITA

Freddy J, Undisclosed

1 person thought this review was helpful.

Ease of Installation
Very Difficult
Duration of Installation
30 minutes - 1 hour

Yes, I would recommend this to a friend

Wrong part
August 31, 2019

Customer service person was very nice. But part doesn't fit my frig !!!! Need to return. How do I return ?

JG69, Lombard Il

Did you find this review helpful?

Ease of Installation
Very Easy
Duration of Installation
Less than 30 minutes
