CONFIRM THE PART FITS

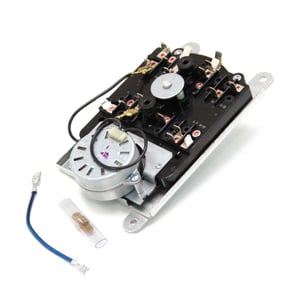

Dryer Timer 505474P

Dryer Timer 505474P

Part #505474P

This part is no longer available.

We've permanently sold out of this part. It's no longer available from the manufacturer and the manufacturer has no substitute for this part. Although our call center staff is always happy to help when possible, they don't have access to this part. If you can't find that part and decide to replace the product, we invite you to visit www.sears.com

Part Information

This timer (part number 505474P) is for dryers.

Timer 505474P controls the electrical components and the duration of the dryer cycles.

Unplug the dryer before installing this part. Wear work gloves to protect your hands.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #LEC30AW-PLEC30AW Amana dryerLEC30AW-PLEC30AW
-
Shop Parts
Model #LEA30AL-PLEA30AL Amana dryerLEA30AL-PLEA30AL
-
Shop Parts
Model #LED57AW-PLED57AW Amana dryerLED57AW-PLED57AW
-
Shop Parts
Model #LES34AW-PLES34AW Speed Queen dryerLES34AW-PLES34AW
-
Shop Parts
Model #LES10AW-PLES10AW Speed Queen dryerLES10AW-PLES10AW
-
Shop Parts
Model #LEA30AW-PLEA30AW Amana dryerLEA30AW-PLEA30AW
-
Shop Parts
