$26.76
CONFIRM THE PART FITS
Part Information

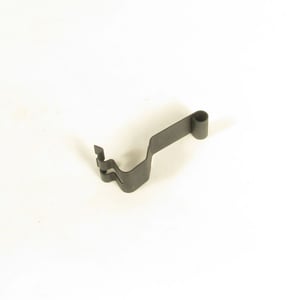

This shift rod cam lock (part number 8417MA) is for snowblowers.
Shift rod cam lock 8417MA attaches in the cam bracket below the auger drive lever and locks the drive lever in place when the drive lever is engaged.
Wear work gloves to protect your hands when installing this part.
Frequently Used Together
- $8.49 |11% OFF Phone Price : $9.49
- $9.89 |9% OFF Phone Price : $10.89
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #88419 Craftsman snowblower | 88419 | Motor mount |
| Model #N826-DELT Noma gas snowblower | N826-DELT | Motor mount |
| Model #536882650 Craftsman gas snowblower | 536882650 | Upper handle |
| Model #536888110 Craftsman gas snowblower | 536888110 | Handle assembly |
| Model #536887751 Craftsman gas snowblower | 536887751 | Handle assembly |
| Model #536881120 Craftsman gas snowblower | 536881120 | Handle |
| Model #536889253 Craftsman gas snowblower | 536889253 | Handle assembly |
| Model #536887752 Craftsman gas snowblower | 536887752 | Handle assembly |
| Model #95052364-0 Sears Canada gas snowblower | 95052364-0 | All parts |
| Model #536881114 Craftsman gas snowblower | 536881114 | Handle assembly |
Reviews
Easy to install however....
It was easy to install however, I wish I bought at least 1 push nut. 1 definitely needs to be replaced when changing the cam lock.
Snow l, Vermont
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
A new cam lock on Craftsman snowblower 536.887752.
The installation of this part was rather easy. I removed the left push-on nut (#801 in the manual's exploded drawing) with a large screw driver by twisting the screw driver at several locations around the nut. Then I removed the spring pivot pin (#800) along with the push-on nut at the other end of the pin. The existing cam lock (#799) can then be removed. I put some grease on the spring pivot pin and inside the new cam lock, put the new cam lock in position, and then reinserted the spring pivot pin through the new cam lock. I then put a metal block (wood might work too) to the right between the spring pivot pin and the blower housing, lightly tapped with a hammer on the push-on nut that was previously removed, and then hit the push-on nut hard with a hammer put force it back on the spring pivot pin. That finished the project.
Jim W, Rochester, MN
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Easy fix. Cam lock replacement.
Pop off lock nut, remove shaft, remove broken cam lock straiten any bent rods align them to each other, hold new part in the correct position insert shaft and put on new lock nut, I used a c clamp to press the 3/8" lock back on to the shaft.
Couzturt, Westford, NY
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Miss leading sales of replacement part
could not locate on you tube how to install cam lock
Jon O, Sioux Falls, South Dakota
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
