CONFIRM THE PART FITS
Part Information

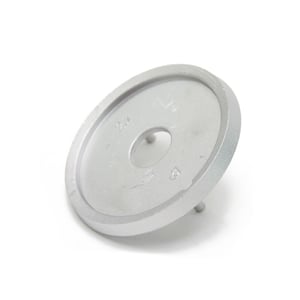

This burner base (part number 00189316) is for cooktops.
Burner base 00189316 holds the orifice and directs the gas to the burner head.
Shut off the gas supply and disconnect electrical power before installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #SGC304RS Thermador gas cooktop | SGC304RS | Maintop component parts |
| Model #SGC304RB Thermador gas cooktop | SGC304RB | Maintop component parts |
| Model #SGC304RW Thermador gas cooktop | SGC304RW | Maintop component parts |
| Model #RDF30QW(PRIOR-9708) Thermador range | RDF30QW(PRIOR-9708) | Gas maintop component (rdds30vqb(prior-9707)) (rdds30vrs(prior-9707)) (rdf30qb(prior-9708)) (rdf30qw(prior-9708)) (rdf30rs(prior-9707)) (rdfs30(prior-9708)) (rdss30(prior-9707)) |
| Model #REF30QB(PRIOR-9708) Thermador range | REF30QB(PRIOR-9708) | Gas maintop component (rdds30vqb(prior-9707)) (rdds30vrs(prior-9707)) (rdf30qb(prior-9708)) (rdf30qw(prior-9708)) (rdf30rs(prior-9707)) (rdfs30(prior-9708)) (rdss30(prior-9707)) |
| Model #RDSS30Q Thermador range | RDSS30Q | Gas burner box assembly |
| Model #RED30VQW(PRIOR-9708) Thermador range | RED30VQW(PRIOR-9708) | Gas maintop component (rdds30vqb(prior-9707)) (rdds30vrs(prior-9707)) (rdf30qb(prior-9708)) (rdf30qw(prior-9708)) (rdf30rs(prior-9707)) (rdfs30(prior-9708)) (rdss30(prior-9707)) |
| Model #RDDS30VQ Thermador range | RDDS30VQ | Gas burner box assembly |
| Model #RDF30RS (9707 & UP) Thermador range | RDF30RS (9707 & UP) | Gas maintop component |
| Model #RDF30QB (9708 & UP) Thermador range | RDF30QB (9708 & UP) | Gas maintop component |
