CONFIRM THE PART FITS
Part Information

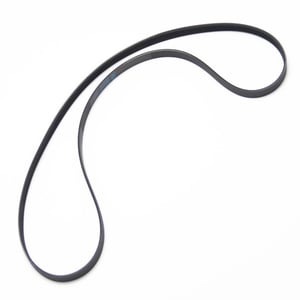

This drive belt (part number 201296) is for ellipticals.
Drive belt 201296 provides the resistance to the pedals on the elliptical.
If the elliptical has a power cord, unplug it before installing this part.
Frequently Used Together
- $17.09 |10% OFF Phone Price : $19.09
- $123.99
- $15.38 |12% OFF Phone Price : $17.38
- $35.69 |14% OFF Phone Price : $41.69
- $29.51 |17% OFF Phone Price : $35.51
- $50.99
- $28.49
- $20.99
- $28.49
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #PFEL60441 Proform elliptical machine | PFEL60441 | All parts |
Model #DRE71040 Proform elliptical machine | DRE71040 | Console/rails/pedal/frame/flywheel |
Model #DRE71041 Proform elliptical machine | DRE71041 | Elliptical assembly |
Model #PFEL91030 Proform elliptical machine | PFEL91030 | Elliptical |
Model #DRE91040 Proform elliptical machine | DRE91040 | Ellipical assembly |
Model #PFEL71031 Proform elliptical machine | PFEL71031 | Elliptical |
Model #DRE91041 Proform elliptical machine | DRE91041 | Elliptical assembly |
Model #PFEL71030 Proform elliptical machine | PFEL71030 | Elliptical |
Model #PFEL91031 Proform elliptical machine | PFEL91031 | Elliptical |
Model #PFEL71032 Proform elliptical machine | PFEL71032 | Elliptical |
Reviews
Difficult to install
It took lots of patience to take apart & install the new belt.
LkSh, Davenport, IA
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
Getting there is the hardest part
You will have to release the nuts on both sides of the rear wheel axle as well as the tensioner locking bolt and then back off the tension bolt that is located under the tensioner. Pull the wheel backwards gently - far enough to remove old/ install the new belt. With the tension device completely released the new belt was tight to get on. Best to put the belt around the resistance wheel (rear) and start the belt on the pedal wheel going on over the top making sure the belt is in the middle / front and back wheels- you won't want to have to move the belt over a groove or two once it's on. When you can't put the belt on any more by hand, then turn the wheel with the pedal post and let the belt climb on. I pushed firmly with my thumb in the longest flat section of the belt - in about .75" with firm pressure to adjust the belt tension.
Pete, Portland Me.
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
